Using R-Tank Stormwater Modules for subsurface drainage on terraced lots with existing utilities.
ERTC Lots 16-18 are nested on a hillside with existing utilities complicating the stormwater drainage system - Ferguson Waterworks keeps the project on track with stackable R-Tank Stormwater Modules which offer both storage and subsurface drainage for slopes.
Overview

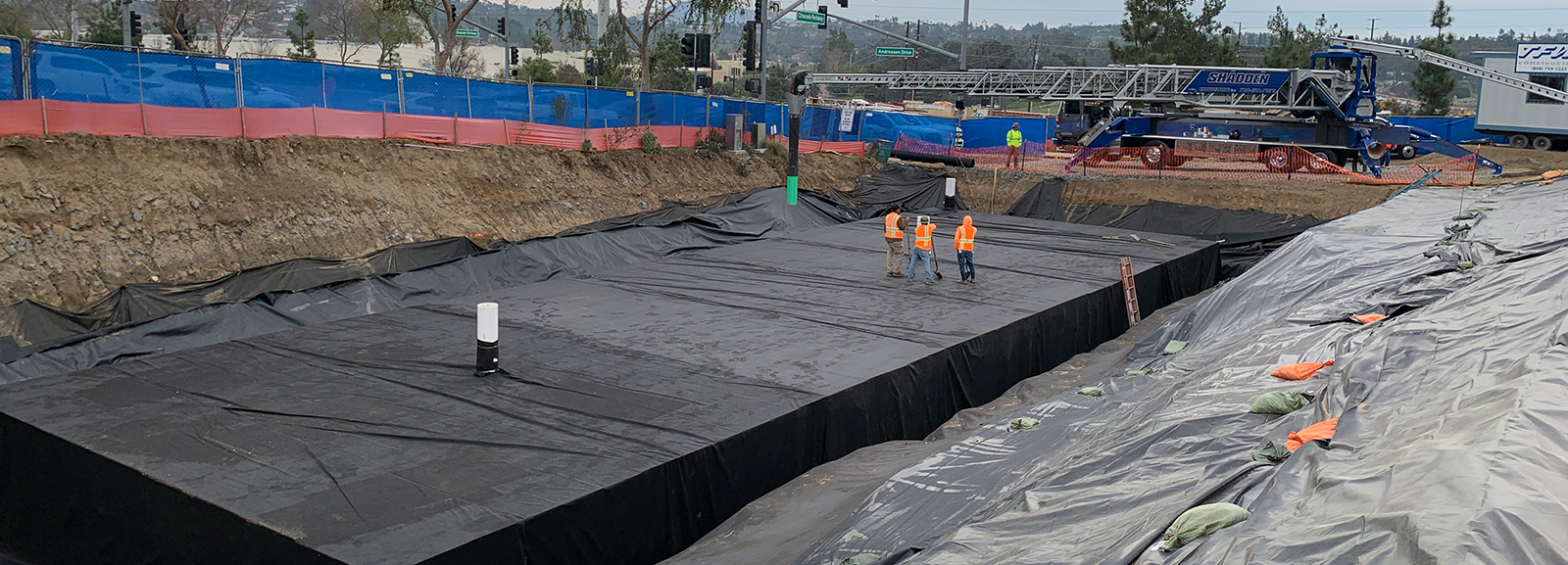

ERTC Lots 16-18 were positioned on a hillside. They consisted of several different terraced areas with varying elevations. In addition to this unique stormwater drainage challenge, an unforeseen utility conflicted with the placement of a storm drain line. Consequently, adding complexity to the stormwater management system solution.
Our Solution

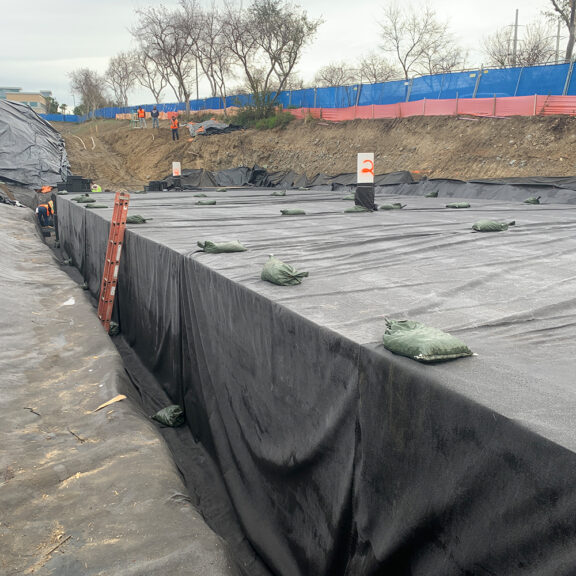

Using the R-Tank Design Tool, we helped design 3 separate decentralized stormwater detention facilities. Because the R-Tank Modular Subsurface Storage System was decentralized, it was able to accommodate the challenge of building on a hillside. In fact, the modular system was adapted to the multiple pad elevations and adjusted to fit the existing utilities.
How can R-Tank’s Modular Stormwater Storage System accommodate subsurface drainage for slopes?

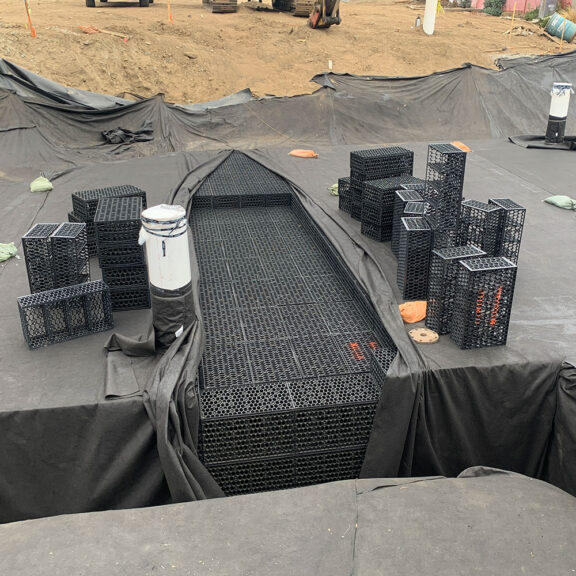

The R-Tank System not only adapts to various shapes but also many heights. Its stackable nature was crucial for this project because it offered a vertical offset between the utility and the top of the tank module. By reducing the module’s height, there was sufficient vertical offset between it and the existing utility.
Why Ferguson Waterworks?
Our expert team works alongside you from project inception to ongoing maintenance. Because our technical expertise was requested early in this project, we were able to help circumvent several conflicts. Using our online R-Tank Design tool, we provided fast solutions and design modifications that not only kept the project on schedule but also in compliance. Connect with your local Ferguson Waterworks expert today or send us a message for help on your next stormwater or geo solutions project.
