Tri-Town Regional Water Treatment Plant Modeling Services

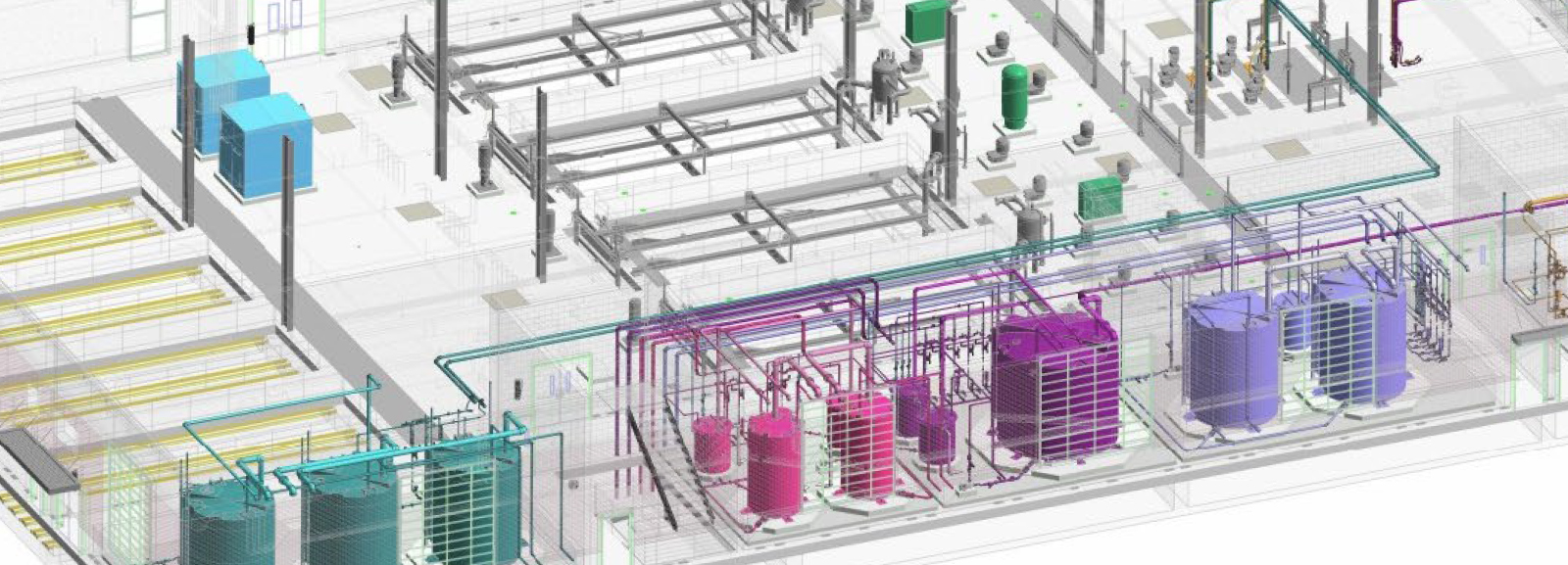

Our dedicated VDC modeling team and vast experience in plant-type construction enabled us to create a complex model of the chemical feed piping. These intricate details offered the client's mechanical site crew an accurate visualization before mobilizing.
Project Overview
The Tri-Town Water District serves the drinking water for several Massachusetts communities. Randolph, Holbrook, and Braintree municipalities highly anticipated the new Tri-Town Regional Water Treatment Plant. In fact, constructing the state-of-the-art 12.5 MGD (million gallons per day) water treatment facility was vital to community infrastructure.
To get started, the team required a detailed water treatment plant model. Specifically, a model outlining the chemical feed piping as well as anchor and support locations to facilitate installation. In addition to the virtual design and construction model, the client needed an accurate bill-of-materials (BOM) in order to quote and procure the water treatment plant PVF and equipment. At the time, the customer didn’t have the resources to dive into the chemical feed piping.
Challenge
Ultimately, the customer needed precise 3D models for the new water treatment facility. However, this level of detail was beyond their in-house capabilities. Furthermore, they required a team to integrate the facility’s model into their federated project file so that all teams could collaborate in sync. In addition, they wanted a lump-sum model-based estimate that was transparent for all parties involved and limited excess or waste in the process. Lastly, they desired a partner to help relieve some of their management limitations and capacity to dive into the chemical feed piping.
Solution
We leveraged our skills and knowledge to provide intricate and accurate VDC modeling services. To begin, we created a BIM (Business Information Model) for the chemical feed piping system. This model supplies a detailed visual for the entire process. Furthermore, it outlines other systems, such as MEP, for the field crews to avoid.
Before mobilizing, we clearly indicated the locations of anchors, supports, and pipe routing. This enabled a more precise planning and execution workflow. Furthermore, with effective communication in place, teams remained updated and on the same page. This was marked by early deliverables, effective information exchanges, and a client-focused approach.
What VDC services did Ferguson Waterworks provide?
• Cutting-edge Building Information Modeling (BIM) technology
• Automatically generated Bill of Materials (BOM) for seamless procurement and fabrication

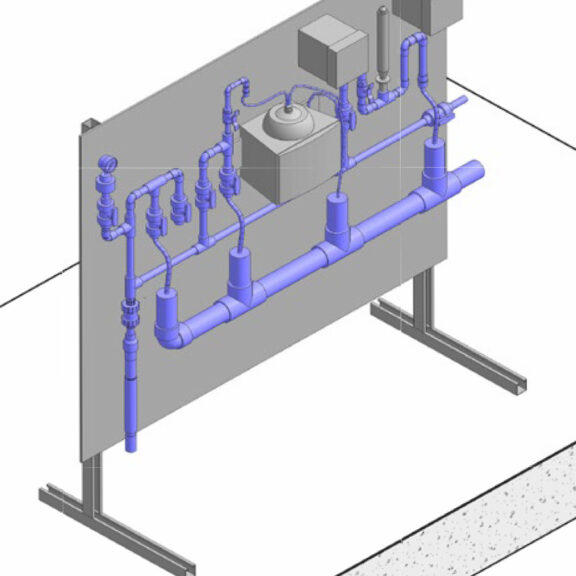

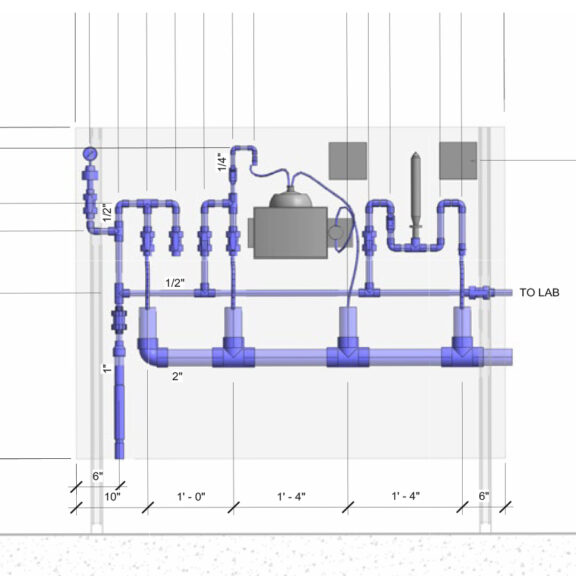

In addition to generating models for the Tri-Town Water Treatment Facility, we also modeled the prefabricated analyzer panels in order to help streamline installation. Further leveraging our VDC capabilities, we created a detailed BOM that included the required specs for the piping. Accordingly, our team presented a lump-sum proposal. The proposal granted the client a clear understanding of both project costs and components. As a result, this reduced the client’s in-house management burden by offering a complete pipe material and modeling package.
The Ferguson Waterworks Advantage
At Ferguson Waterworks, we have teams dedicated to Plant and Strategic Infrastructure. Tending these types of projects, day in and out, provides a competitive edge. We are innovative problem solvers, well-versed when it comes to the water cycle, and proficient at what we do. From estimating and VDC services to product supply and ongoing support, we are your partner. Contact your local expert today or send us a message to get started.
