ECORASTER® and Bloxx®

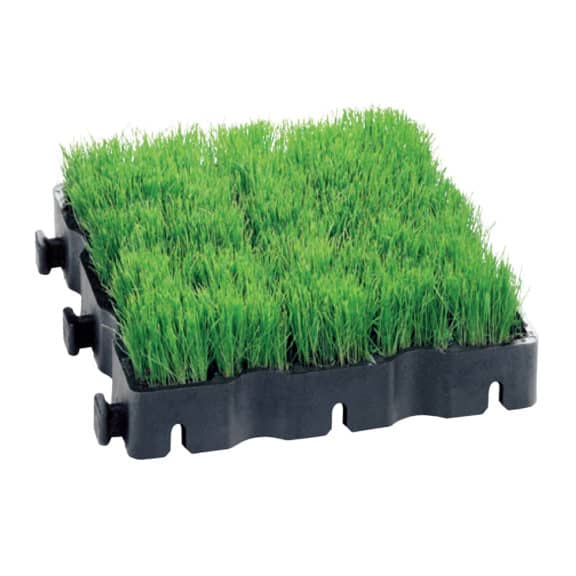

ECORASTER E40 and ECORASTER E50

Guaranteed, E40 and E50 are high-quality and hassle-free permeable grass and gravel surface reinforcement. They are commonly used for fire lanes, utility lanes, medians and shoulders, and many more applications. This professionally engineered product consists of low-density polyethylene (LDPE). Furthermore, installation is quick and easy because this product is delivered in palletized 14-square-foot pre-assembled panels. Whether your project requires an all-around or heavy-duty approach, this system offers dependable surface reinforcement.

Verified Performance

ASTM C39-21 – Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens. Testing was performed on filled and unfilled grid systems to evaluate load transfer under typical installation conditions.

Low Maintenance

The E40 and E50 permeable ground reinforcements require little to no maintenance. In addition, they do not require edging! The individual infill compartments minimize rutting and bird baths, which typically cause challenges with unpaved surfaces.

Unmatched Resistance

Built to withstand whatever conditions you throw at them, these interlocking Polyethylene pads resist frost, UV damage, deicing salt, gasoline, and more.

Durable and Drivable

Fully drivable, both models demonstrate an actual resilience of up to 800 t/m2.

Rapid Installation

E40 and E50 pieces are preassembled in approximately 14-square-foot panels. As a result, installation is fast. In fact, a single person can install up to 1,076 square feet of pads in one hour without using heavy construction equipment.

Three-Step Process

1. Lay
2. Cut
3. Fill

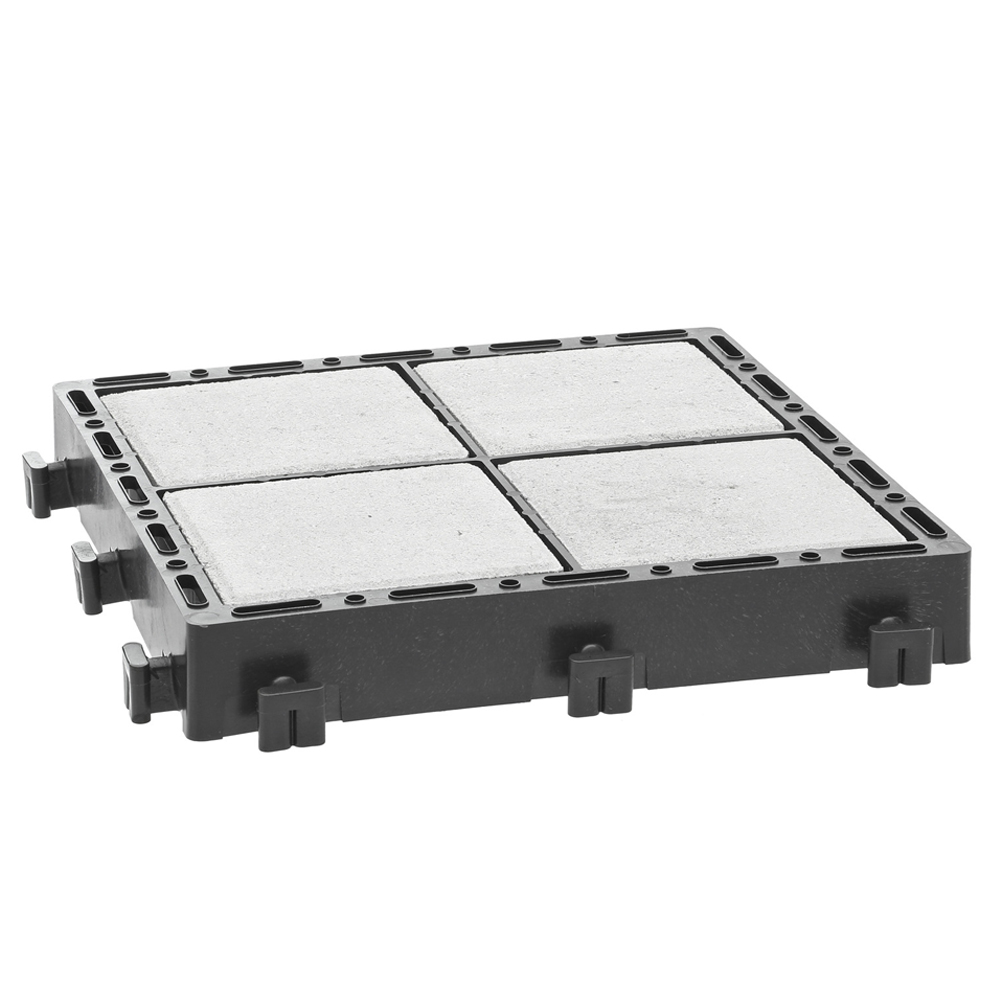

ECORASTER Bloxx

The creative and flexible design of ECORASTER Bloxx delivers reliable permeable ground reinforcement. It’s cost-effective and saves time. As a result of its flexibility, the ECORASTER Bloxx can be placed virtually anywhere. Just snap them together and drop in the paver inserts. There is no need to fill the gaps. Created from 100% recycled material.

Verified Performance

• ASTM C140/C140M-23a – Concrete masonry unit sampling & testing
• ASTM C936 – Interlocking concrete paving units (compressive strength, absorption, density)
• ASTM D6684-18 – Freeze/thaw durability
• ASTM E1980 – Solar Reflectance Index (SRI)
• ANSI A326.3-2021 – Dynamic coefficient of friction (wet & dry)
• ASTM C418-20 – Abrasion resistance
• ASTM F1951-08 – ADA surface accessibility compliance

Innovative Design

ECORASTER Bloxx has integrated anti-clogging drainage, offering one of the best infiltration rates in the industry.

A Safer Surface

Bloxx features a unique safety interlocking, which means no bumps and no tripping hazards.

Space for Creativity

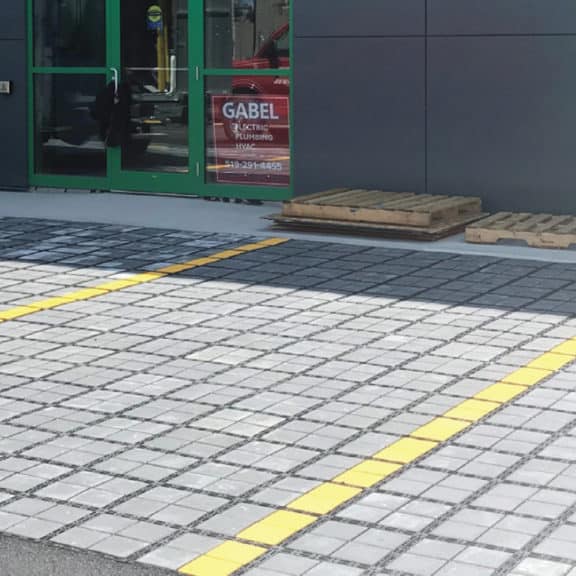

Available in a variety of colors, select from dark gray, light gray, and red—for customized layouts. Combine colors for built-in pavement markings and parking space delineation.

Easy to Install

Install in seconds! Simply snap together the ECORASTER system and insert the blocks. Blocks are even replaceable without loosening the cluster.
