Connect with an expertNatrx Exoforms™
Stabilize shorelines, dissipate wave energy, and support thriving marine ecosystems.
Natrx ExoForms provide a nature-based solution that protects both shorelines and local ecosystems. Their nature-based design provides habitat for coastal life to thrive, in addition to wave dissipation, sediment capture, and more. Each ExoForm is modular, flexibly adapting to site and aesthetic requirements. As local habitat takes up residence in the ExoForms, the shoreline protection system offers even greater performance.
Manufactured in Louisiana, USA.
What applications benefit from shoreline protection like Natrx ExoForms?
- Living shorelines
- Coastal and riverine erosion control
- Storm and hurricane recovery
- Fisheries and marine conservation projects
- Artificial reefs
- Marinas and waterfront developments
- Oyster and coal restoration areas
- Levee and infrastructure protection
- Wetland and marsh stabilization
- Mitigation projects
What are the features and benefits of Natrx ExoForms?
Natrx ExoForms are precision-engineered to work with nature to dissipate waves, stabilize shorelines, and support thriving marine ecosystems.
- Wave dissipation – Unique shapes help dissipate waves and capture sediment.
- Marine habitat – Textured surfaces and nature-based shapes encourage organisms to colonize quickly.
- Water exchange – Purpose-built voids support both water exchange and habitat.
- Adaptable design – Modular units are available in various shapes, sizes, and designs, adapting to the site and aesthetic requirements.
- Stable on soft soil – ExoForms do not require anchors, even on soft soils.
- Simple installation – Built-in handling features make installing ExoForms a breeze. Many applications do not require heavy equipment.

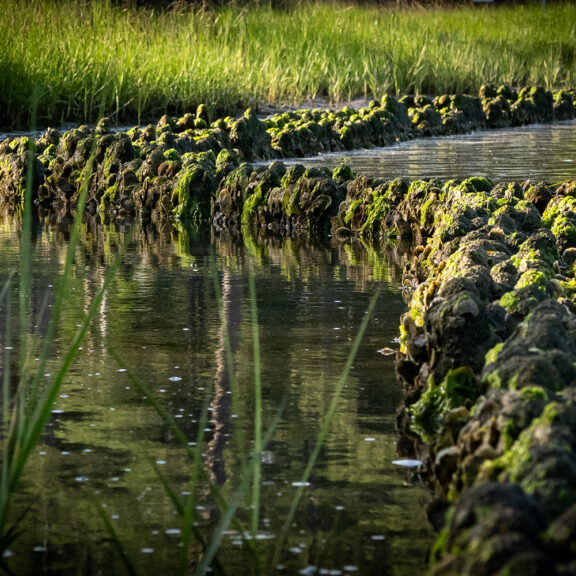

WaveBrush™
Low-energy breakwater units

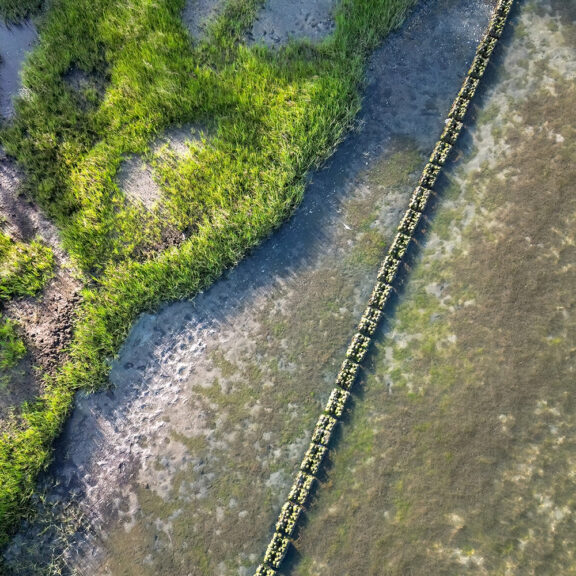

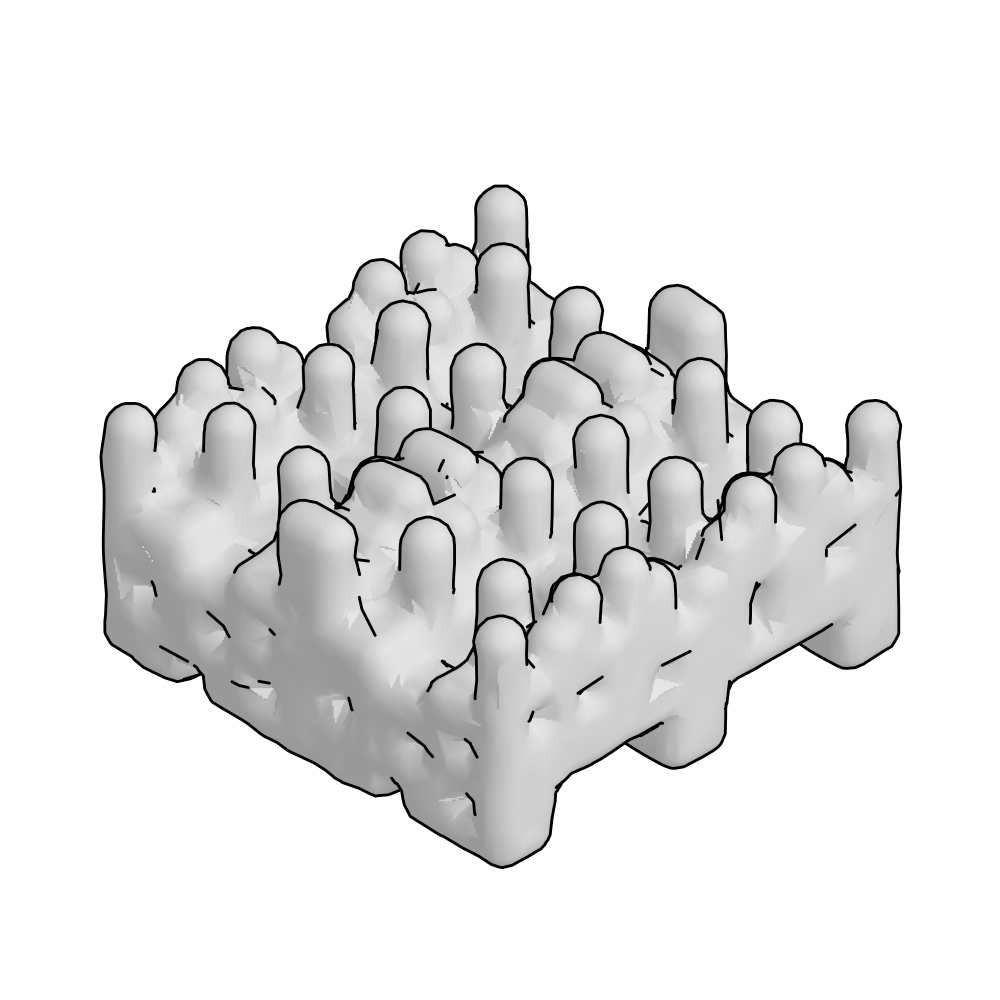

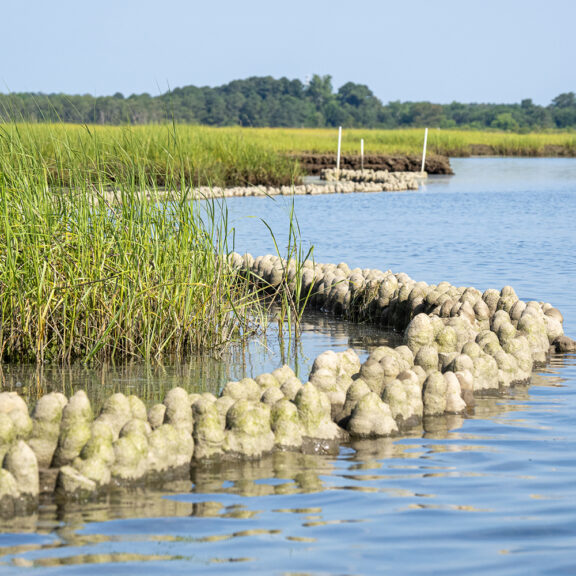

Natrx WaveBrush-18™ and WaveBrush-18W™ offer a low-relief coastal resilience solution. Modular with a naturalistic design, WaveBrush ExoForms slow waves, trap sediment, stabilize soft banks, and expand habitat in shallow, low-energy waters. In addition, WaveBrush uses minimal material and lightweight equipment, offering practical benefits through planning, installation, and ongoing performance.
Natrx WaveBrush-18 Specifications
- Dimensions: 33”L x 33”W x 18”T
- Weight: 500 lbs
- Benthic Surface area: 23.4 sqft
- Bearing area: 4.1 sqft
- Bearing pressure: 121.2 lb/sqft
- Material: concrete (Portland-Limestone Cement Type IL ASTM C595, Mason Sand ASTM C144)
Natrx WaveBrush-18-W Specifications
- Dimensions: 33”L x 33”W x 18”T
- Weight: 850 lbs
- Benthic Surface area: 39.7 sqft
- Bearing area: 7.6 sqft
- Bearing pressure: 112.4 lb/sqft
- Material: concrete (Portland-Limestone Cement Type IL ASTM C595, Mason Sand ASTM C144)
WaveBrush-Planter™
Boost biodiversity with durable, nature-positive structures.
Support marsh vegetation and shoreline plantings with the Natrx WaveBrush-Planter ExoForms. Their naturalistic forms blend seamlessly with surrounding environments, providing organic void space for marine species.
Natrx WaveBrush-Planter Specifications
- Dimensions: 33”L x 33”W x 18”T
- Weight: 1,000 lbs
- Benthic surface area: 38.7 sqft
- Bearing pressure: 132.2 lb/sqft
- Bearing area: 7.6 sqft
- Material: concrete (Portland-Limestone Cement Type IL ASTM C595, Mason Sand ASTM C144)

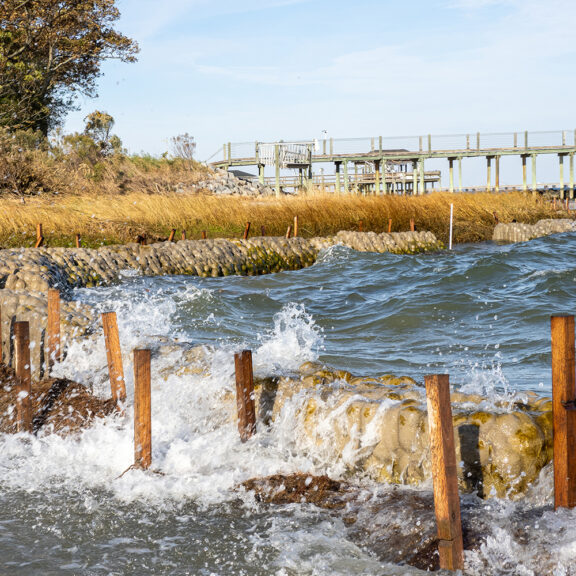

WaveSlope™
Medium-energy breakwater units

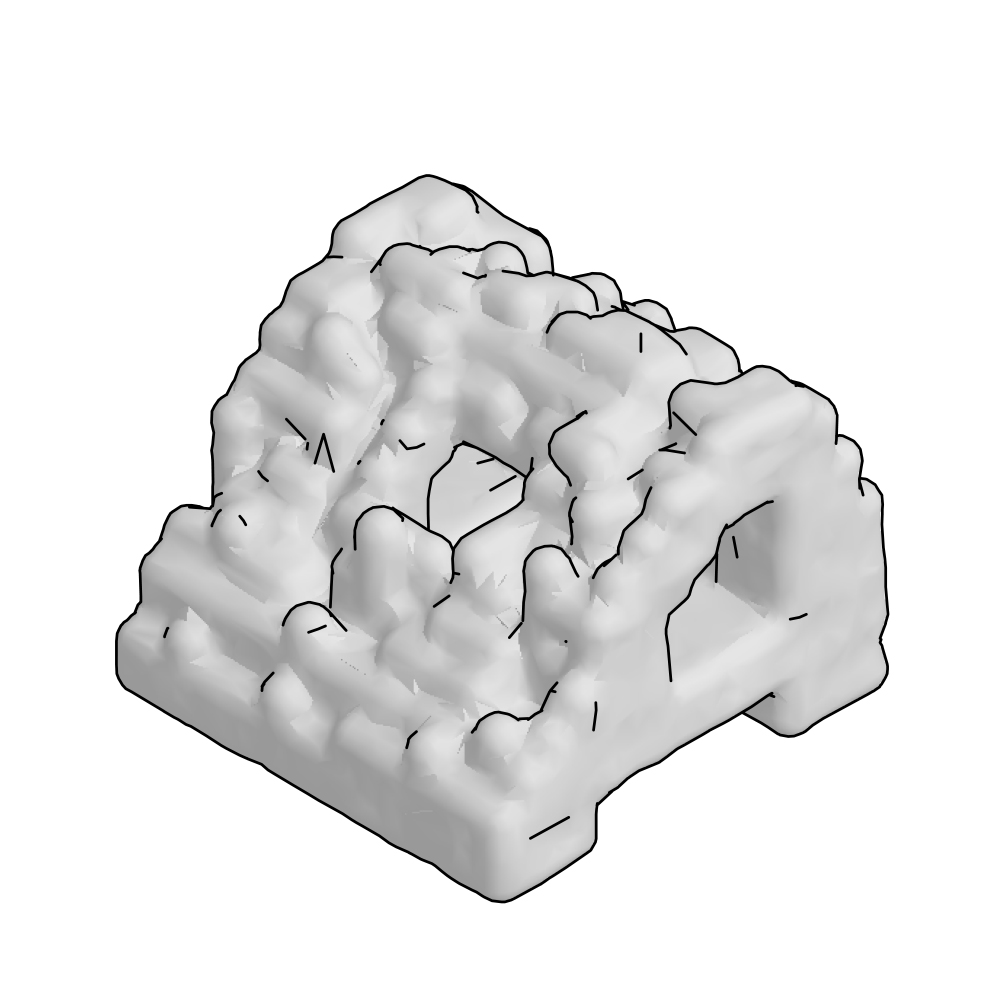

Natrx WaveSlope offers powerful wave reduction with lightweight installation, minimal bottom disturbance, and natural aesthetics. Its modular, sloped design stabilizes banks, contains marsh fill, and creates high-value habitat surface across energetic shorelines.
Natrx Waveslope-24™ Specifications
- Dimensions: 33”L x 33”W x 24”T
- Weight: 1,200 lbs
- Benthic surface area: 42.1 sqft
- Bearing area: 7.6 sqft
- Bearing pressure: 158.7 lb/sqft
- Material: concrete (Portland-Limestone Cement Type IL ASTM C595, Mason Sand ASTM C144)
Natrx Waveslope-33™ Specifications
- Dimensions: 33”L x 33”W x 33”T
- Weight: 2,000 lbs
- Benthic surface area: 60.2 sqft
- Bearing area: 7.6 sqft
- Bearing pressure: 264.5 lb/sqft
- Material: concrete (Portland-Limestone Cement Type IL ASTM C595, Mason Sand ASTM C144)

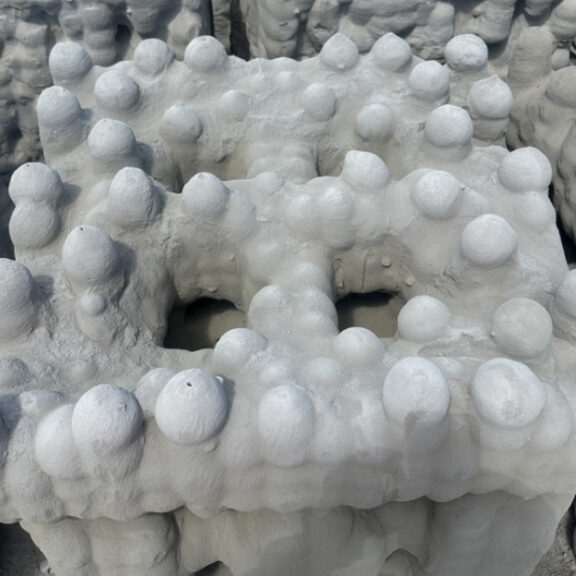

Lattice™
High-energy breakwater units

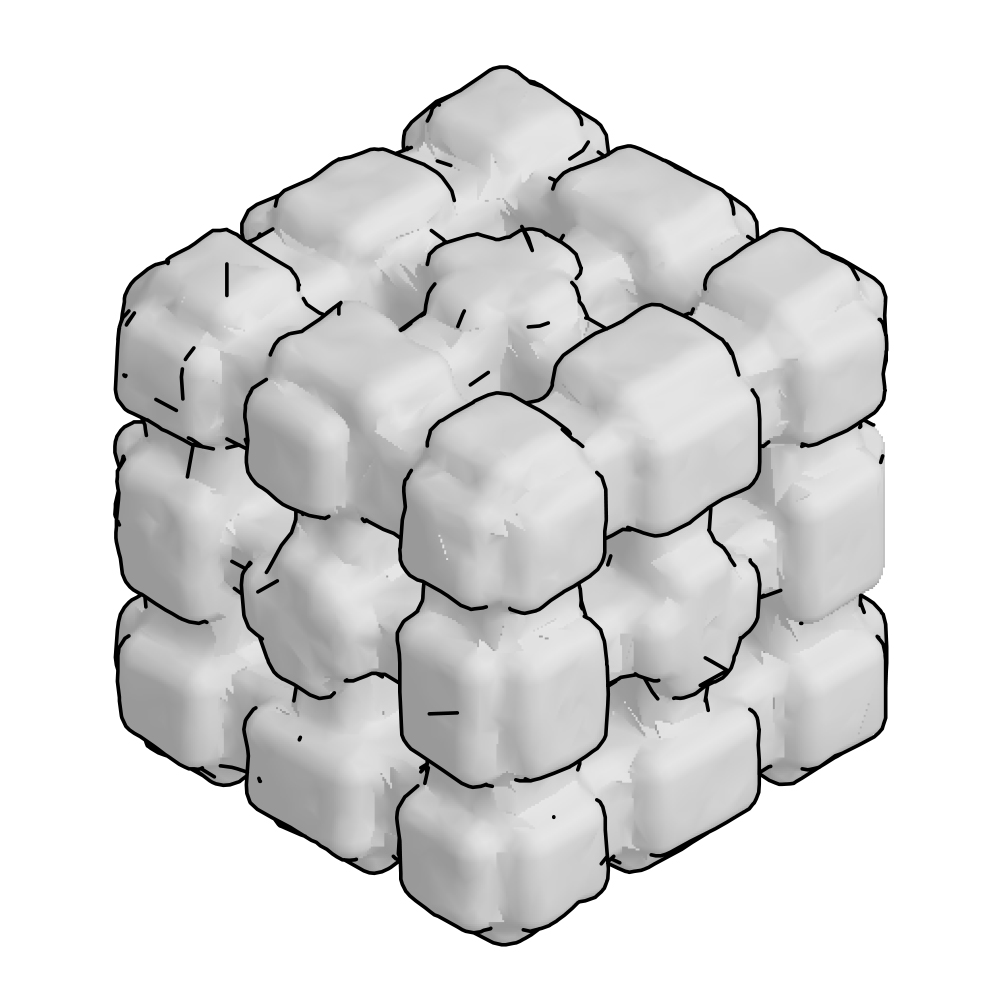

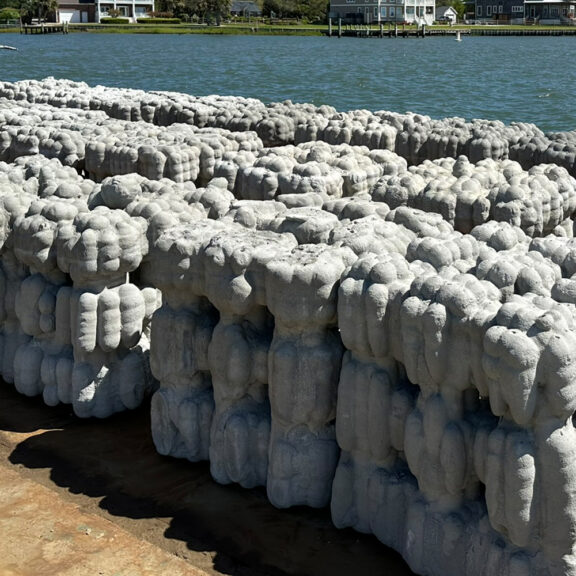

Natrx Lattice delivers durable, modular shoreline and riverine protection using minimal material and light industrial equipment. Its design slows water, stabilizes soils, and adds extensive habitat surface for ecological growth.
Natrx Lattice-24™ Specifications
- Dimensions: 33”L x 33”W x 24”T
- Weight: 1,200 lbs
- Benthic surface area: 49.2 sqft
- Bearing area: 7.6 sqft
- Bearing pressure: 158.7 lb/sqft
- Material: concrete (Portland-Limestone Cement Type IL ASTM C595, Mason Sand ASTM C144)
Natrx Lattice-33™ Specifications
- Dimensions: 33”L x 33”W x 33”T
- Weight: 2,000 lbs
- Benthic surface area: 76.1 sqft
- Bearing area: 7.6 sqft
- Bearing pressure: 264.5 lb/sqft
- Material: concrete (Portland-Limestone Cement Type IL ASTM C595, Mason Sand ASTM C144)

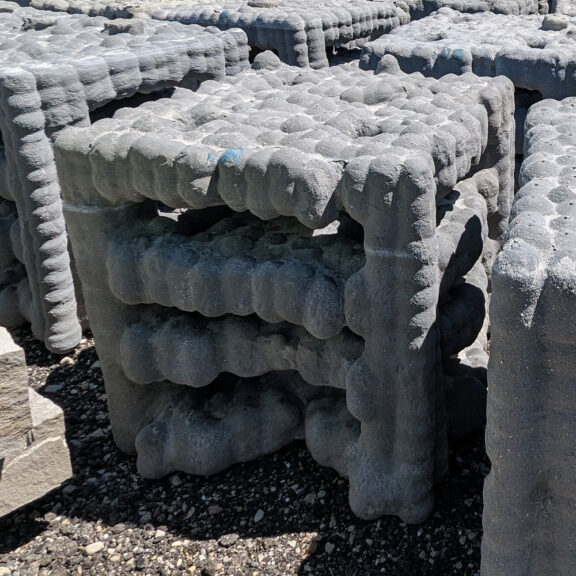

Habitat Forms™
Durable, nature-positive resilience structures that boost biodiversity.

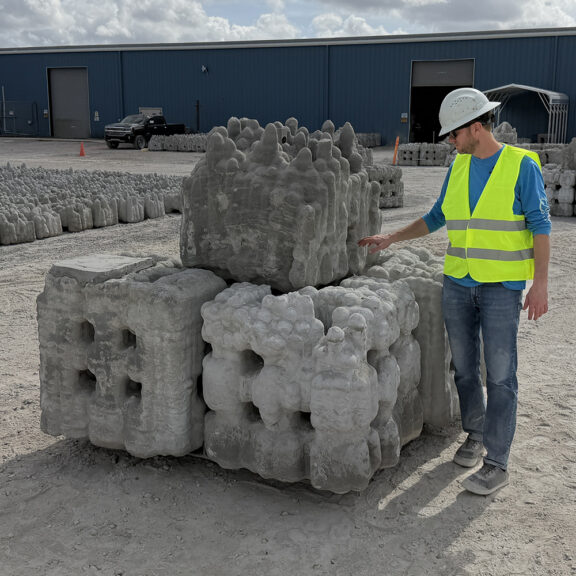

The Habitat family— Crabitat™, FishHouse™, and CoralForm™— offers durable, nature-positive structures that boost biodiversity, provide refuge for marine life, and install easily with lighter equipment. Furthermore, they generally outperform traditional rock in both ecological value and efficiency.
Crabitat
Shoreline protection and refuge for benthic life.

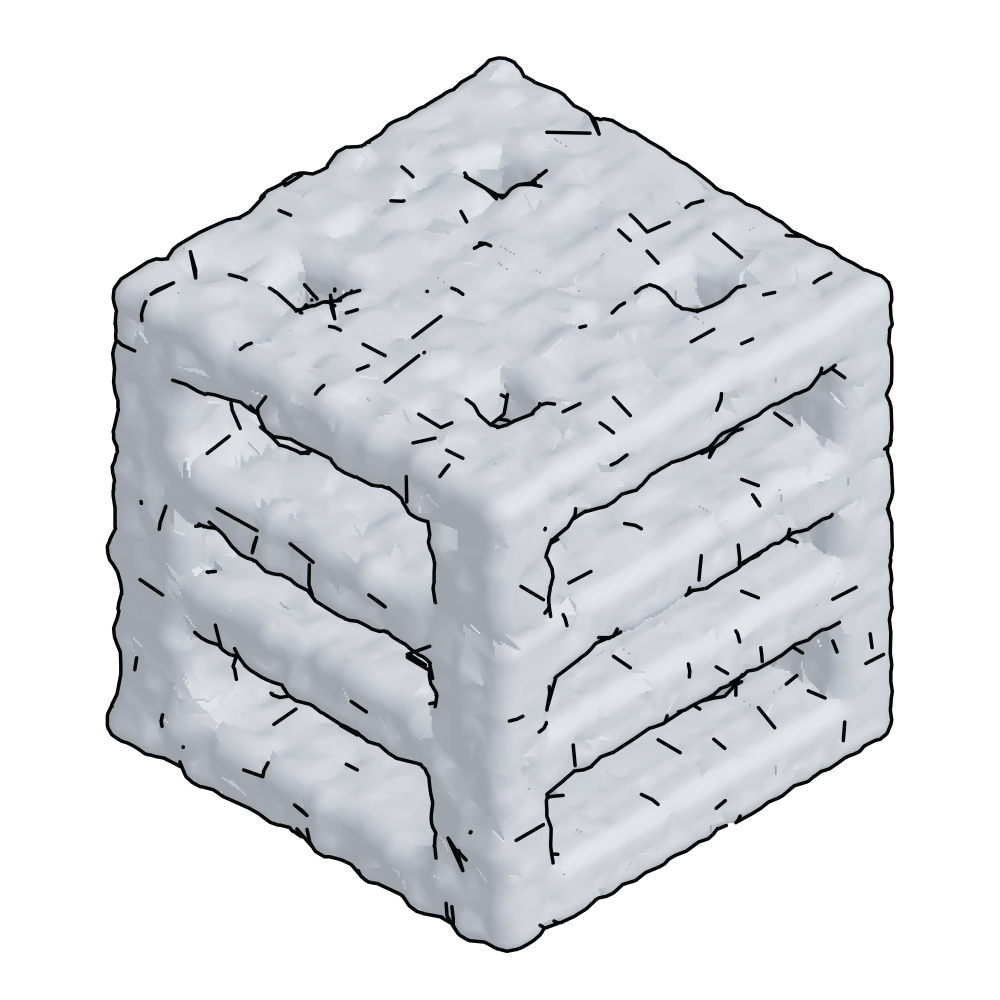

Build an intertidal-friendly retreat for crabs and juvenile species on living shorelines and coastal restoration projects for long-term shoreline resilience.
- High-performance geometry design creates, enhances, and protects coastal ecosystems
- Horizontal features specifically suit crabs, juvenile species, and benthic life
- Optimized surface area promotes marine growth and ecological colonization
- Lightweight-for-volume construction improves installation efficiency
- Low environmental disturbance and reduced bottom impact
- Naturalistic forms blend seamlessly with the surrounding intertidal environments
- Engineered void spaces provide critical refuge for crustaceans and small organisms
- Straightforward implementation and efficient deployment, requiring significantly lighter equipment for installation than traditional rock
FishHouse
Provide a vital marine refuge.
Ideal for living shorelines, fisheries, and artificial reefs, Natrx FishHouse handles medium wave energy and larger tidal fluctuation environments. Furthermore, install FishHouse ExoForms as an ecological feature on breakwaters, jetties, and seawalls to enhance habitat complexity and biodiversity.
- Large surface area for less weight and material
- Organic shape and void spaces promote marine growth and provide ideal fish habitat
- Safer, faster, and more cost-efficient installation than traditional methods
- Low environmental disturbance and reduced bottom impact
- Naturalistic forms blend seamlessly with the environment
- Boosts biodiversity and ecological complexity
- Installs with a small crane or excavator
Natrx FishHouse Specifications
- Dimensions: 33”L x 33”W x 33”H
- Weight: 1,600 lbs
- Surface area: 64 sqft (7.5x net new)
CoralForm
High rugosity forms offering stability in high-energy waters.
Support coral and marine habitat while maintaining structural stability in high-energy environments with 3D-printed CoralForms. CoralForms combine advanced digital design and DryForming™ concrete production to create high rugosity structures with long-term durability. As a result, they are ideal for offshore coral reef restoration, artificial reef development, and fisheries enhancement projects.
What are the ecological features of CoralForm modular underwater units?
- High rugosity and surface complexity for enhanced biological attachment
- Varied hole sizes, crevasses, ledges, spires, and overhangs
- Integrated coral attachment points for diver-assisted installations
- Habitat support for corals, fish, and reef invertebrates
What is the structural performance of Natrx CoralForms?
To create vertical relief and habitat complexity, each CoralForm module consists of five interlocking units: Four base units support a fifth top unit. This modular ExoForm offers stability in high-storm events, withstanding wave heights exceeding 18’ with 18-second wave periods in depths of over 30’.
